VPX, cPCI Serial, cPCI & VME Data Storage Blades / Modules
Vanguard Data Storage Blade/Module Products are available in an unlimited variety of configurations. Choose from direct attached storage (SAS, SATA etc.) or networked storage devices with Solid State Drives or Hard Disk Drives. Vanguard can quickly create unique customer specific configurations.
| Back Planes: | VPX, cPCI Serial, cPCI and VME |
| Form Factors: | 3U One Slot, 3U Two Slot, 3U Three Slot 6U One Slot, 6U Two Slot, 6U Three Slot |
| Interfaces: | SATA, SAS, NVMe/PCIe, SCSI Ultra-320, PATA |
| Networks: | 1 Gbe, 10 Gbe, 4, 8 & 16 Gbps FC |
| Self Encrypting: | Available |
| Cooling Options: | Air Cooled, Conduction Cooled |
| Temp Ranges: | Commercial, 0 to 70 C Industrial, -45 to + 85 C |
| Capacity: | 128 GBytes to 256 TBytes |
| RAID Options: | 0, 1, 3 & 5 (networked products) |
| Data Destruction: | 10+ Options Available |
A USB3 interface desktop docking bay is available. This makes it easy to connect drives removed from embedded blades to any computer with a USB port. Moving data for analysis is easy and convenient
PRODUCT SHEET (PDF) >
3U, 1S Conductively
Cooled Removable Drive
3U, 1S Air Cooled
Fixed Drive
6U, 1S Air Cooled,
Removable Drives
6U, 1S Air Cooled
Removable Dual Drives
6U, 1S Air Cooled
Fixed Drives
6U, 2S Air
Cooled NAS,
Fixed Drives
6U, 1S
Conductively
Cooled Fixed Drives
6U, 2S,
Conductively
Cooled Fixed Drives
6U, 3S Air
Cooled Fixed
Drive, Tape Drive
6U, 2S Air Cooled
Removable Drive,
Battery Back-Up
6U, 2S Air
Cooled NAS,
Removable Drives
6U, 2S Air Cooled
Removable Drive
6U, 2S Air Cooled
Optical Transceiver

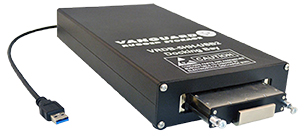

USB3 Desktop
Docking Bay
Common
Removable Drive
