Just A Box Of Disks (JBOD)
Vanguard JBOD Products are available with State of the Art Solid State Drives with single drive capacity as high as 32 TBytes (Samsung, SAS) and Hard Disk Drives with single drive capacity as high as 10 TBytes (Seagate, SAS).
| Interfaces: | SATA, SAS, NVMe / PCIe, USB, SCSI Ultra-320 |
| Capacity: | Up to 1440 TBytes |
| SSD Write Data Rates1: | SATA: 530 MBps, SAS: 900 MBps, NVMe: 1,200 MBps |
| SSD Read Data Rates1: | SATA: 550 MBps, SAS: 1200 MBps, NVMe: 2,000 MBps |
| HDD Data Rates1: | SATA: 249 MBps, SAS: 315 MBps |
| Self Encrypting Drives: | Available |
| Cooling Options: | Air Cooled, Conduction Cooled |
| Temp Ranges: | Commercial, 0 to 70 C (SSDs) Industrial -45 to + 85 C (SSDs) Commerical: 5 to 55 C (HDDs) Commercial: 0 to 60 C (HDDs) |
| Data Destruction: | 10+ Options Available |
A USB3 interface desktop docking bay is available for SATA Drives. This makes it easy to connect drives removed from embedded sytems to any computer with a USB port. Moving data for analysis is easy and convenient.
PRODUCT SHEET (PDF) >
1 Slot Blades VPX,
cPCI Serial, cPCI, VME

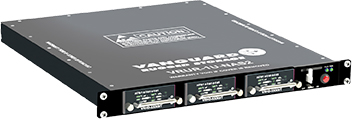

1U 19" Rack
MIL-STD-461

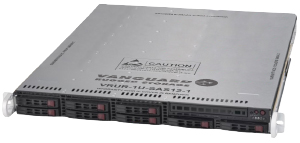

1U 19" Rack
Commercial, Unshielded
2U 19" Rack
Commercial, Unshielded
2U 19" Rack
MIL-STD-461
1/2 ATR
Compact
1/2 ATR
Standard
2 Slot Blades VPX,
cPCI Serial, cPCI , VME

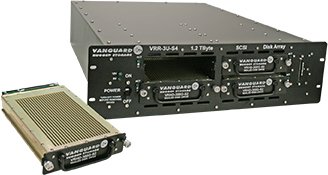

3U 19" Rack
Custom Front Plate
MIL-STD-461
3U 19" Rack
Unshielded Standard
Front Plate
3U 19" Rack
Unshielded
4U 19" Rack
Custom Front Plate
MIL-STD-461
4U 19" Rack
MIL-STD-461
(Up to 1440 TB)
4U 19" Rack
Commercial
Unshielded
USB3 Desktop
Docking Bay
1) Maximum Rates for Sequential, Unformatted Data, for Commercial Temp Drives. Test values measured using Iometer (Iometer.org).
Formatted data rates will be lower. Random data rates will be lower. Data Rates for Industrial Temp drives (-40 to +85 C will be lower).
