Network Attached Storage (NAS)

The Vanguard NAS Product line spans a large range of capacities and form factors, and is highly configurable to meet any commercial, industrial or rugged networked storage requirement.

Network Interfaces: 1 Gbit Ethernet
10 Gbit Ethernet
Internal Interfaces: SATA, SAS, NVME / PCIe
Operating System: Linux
SNMP v3 Support: Available
Self Encrypting: Available
In Line Encryption: Available
Data Destruction: 10+ Options Available
Capacity: 120 GBytes to 1440 TBytes
RAID Options: 0, 1, 3, & 5
Removable Drives: 2 to 45
Storage Technology: Solid State or Hard Disk
Cooling Options: Air Cooled, Conduction Cooled
Temp Ranges: Commercial, 0 to 70 C
Industrial, -45 to + 85 C
EMC / RFI: MIL-STD-461 Compliant Devices

User / Configuration Interface: Fully integrated HTML / Web Page user interface for device configuration and monitoring via an Ethernet connection on-site or from a remote client computer.

PRODUCT SHEET (PDF) >

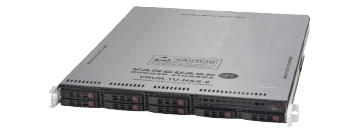

1U 19" Rack
Commercial, Unshielded

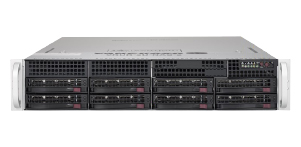

2U 19" Rack
Commercial, Unshielded

2 Slot Blades VPX,
cPCI Serial, cPCI, VME

2U 19" Rack
MIL-STD-461

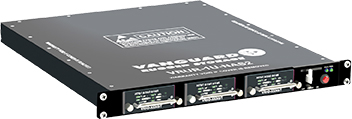

1U 19" Rack
MIL-STD-461

1/2 ATR Compact
MIL-STD-461

1/2 ATR Standard
MIL-STD-461

2U 19" Rack
MIL-STD-461

4U 19" Rack
Custom Front Plate
MIL-STD-461

3U 19" Rack
Custom Front Plate
MIL-STD-461

4U 19" Rack
MIL-STD-461
(Up to 1440 TB)

VPX 4U 19" Rack
Commercial, Unshielded
